I – 4 WOOD

90° foldable handle for minimal footprint and greater ease of transport, even in small cars.

Micrometric adjustment of the angle of the handle, for effective and comfortable work. Unlike traditional handles with ratchet, the handle with micrometric adjustment adapts perfectly to the height of the operator, facilitating his work.

Elastic dust hood equipped with bristles, made from durable fabric for optimal surface adherence, ensuring a dust-free work environment at all times.

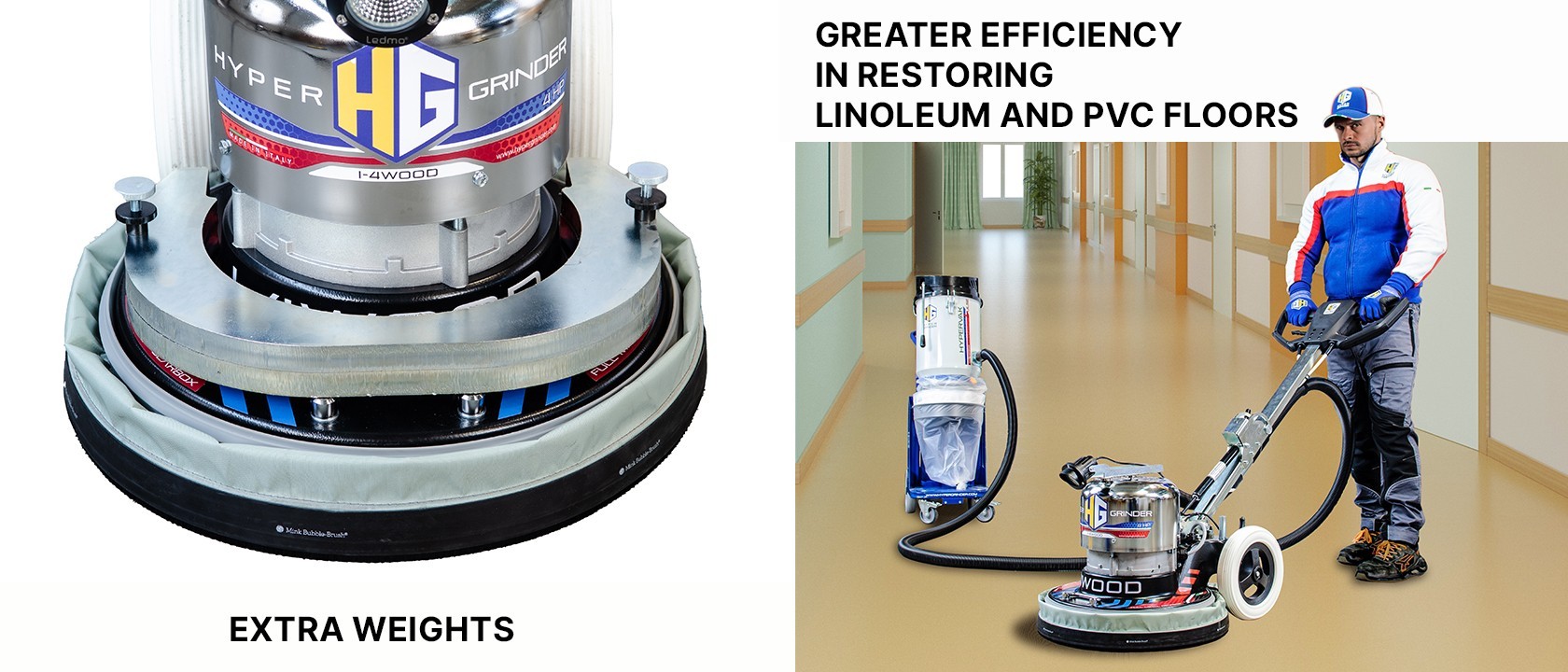

With I-4 WOOD, you can use stackable additional weights, each weighing 6.5kg. The machine is equipped with specific slots where the weights will fit perfectly without vibrations and without the need for screws or tools.

Handle shaft stem made of 2mm thick STEEL profile for maximum robustness and reliability.

Standard Shuko Socket. Installed in a convenient location for the operator. Enables the connection of specialized accessories such as the on-board vacuum cleaner or LED spotlight.

Aluminium basement: A material renowned for its Excellent Mechanical Properties, including Lightness, Strength, and Corrosion Resistance.

Adjustable Wheel Trolley:

A) LOWERED Wheels (Use as a Floor Grinder) for aggressive, effortless operations.

B) RAISED Wheels (Use as a Monobrush) for maneuvering.

The vacuum hose, placed high, does not hinder movement during sanding. The nozzle inlet is integrated into the aluminium basement for greater convenience and efficiency.

Two optional versions of the lighting kit are available:

A) Directional LED light kit on magnetic bracket.

B) Circular LED kit for lighting around the base of the machine.

Big size White Non-Marking Wheels. Made from Closed-Cell Anti-Deformation Material. Size ø300mm.

Foldable Handle: Located at the Front of the Aluminum Basement, it Facilitates the Lifting and Transport of the I-4Wood.

HD gearmotor for 4HP Single Speed versions is equipped with a reinforced metal flange and Heavy Duty mount, ideal for the most demanding conditions.

W reducer for 4HP Variable Speed versions and W gearmotor for 3.5HP versions: equipped with a reinforced metal flange with W mount, designed to ensure maximum reliability and durability even in the most demanding applications.

Reducer made entirely of steel, featuring three helical gears with a thickness of 20 mm and a 30 mm toothed crown.

Reducer equipped with a next-generation reinforced shaft for greater strength and durability.

Tool holder plates equipped with new reinforced shafts made of C40 steel, 20 mm in diameter, for greater mechanical strength and long-lasting durability.

Handle Shell made of Reinforced ABS. Inside, an additional Metal Reinforcement significantly increases its strength and durability.

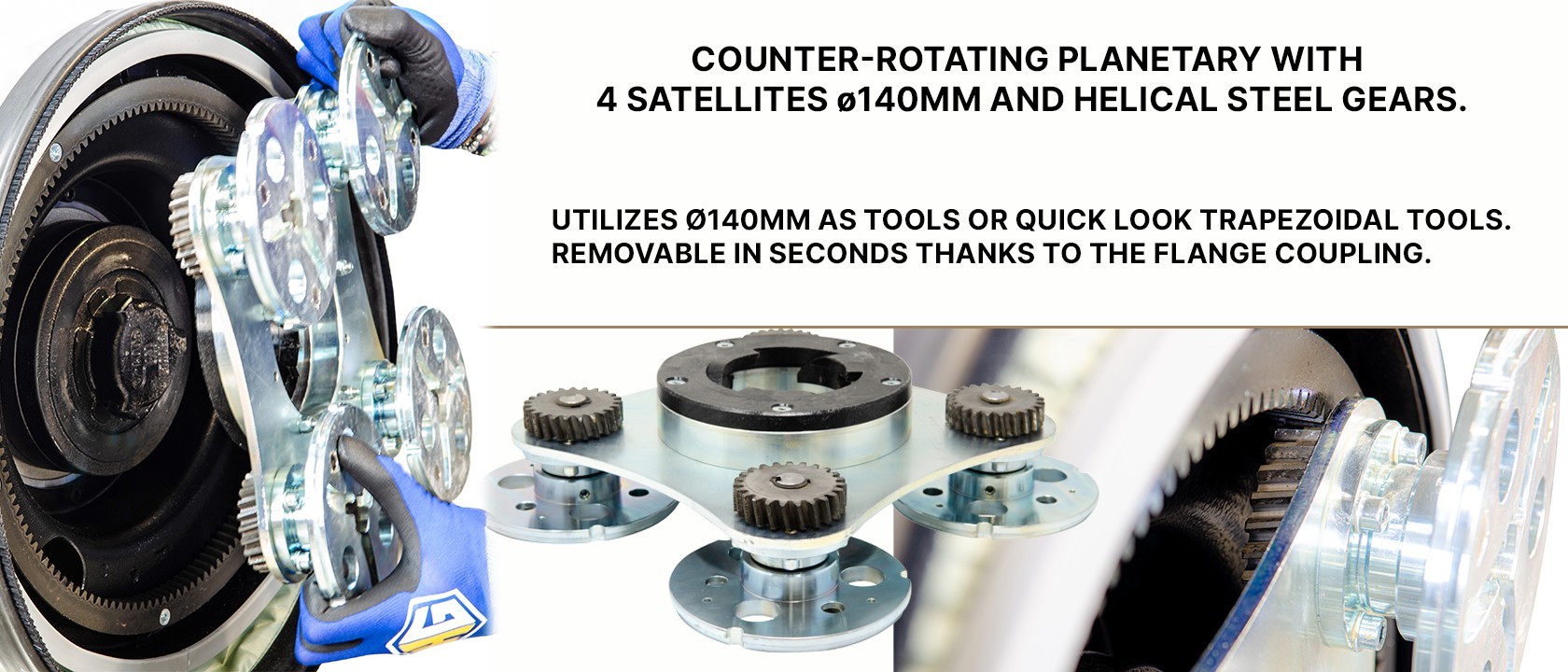

Oversized planetary bearings to ensure greater mechanical strength and extended operational lifespan.

17 mm thick toothed crown, designed to ensure maximum strength and smooth rotation of the planetary system.
