| Model | HRC 880 RX |
|---|---|
| Motor HP max | 20 HP |
| Drive Inverter | 15 kW |
| Volt | 380-480 |
| Hertz | 50/60 |
| Motor speed rpm | 400-1300rpm |
| Working width | 880mm |
| Working width | 4x340mm |
| Liquids Tank | 46 lt |
| Dimensions LxAxP cm | 90x130x120 |
| Weight | -- Kg |

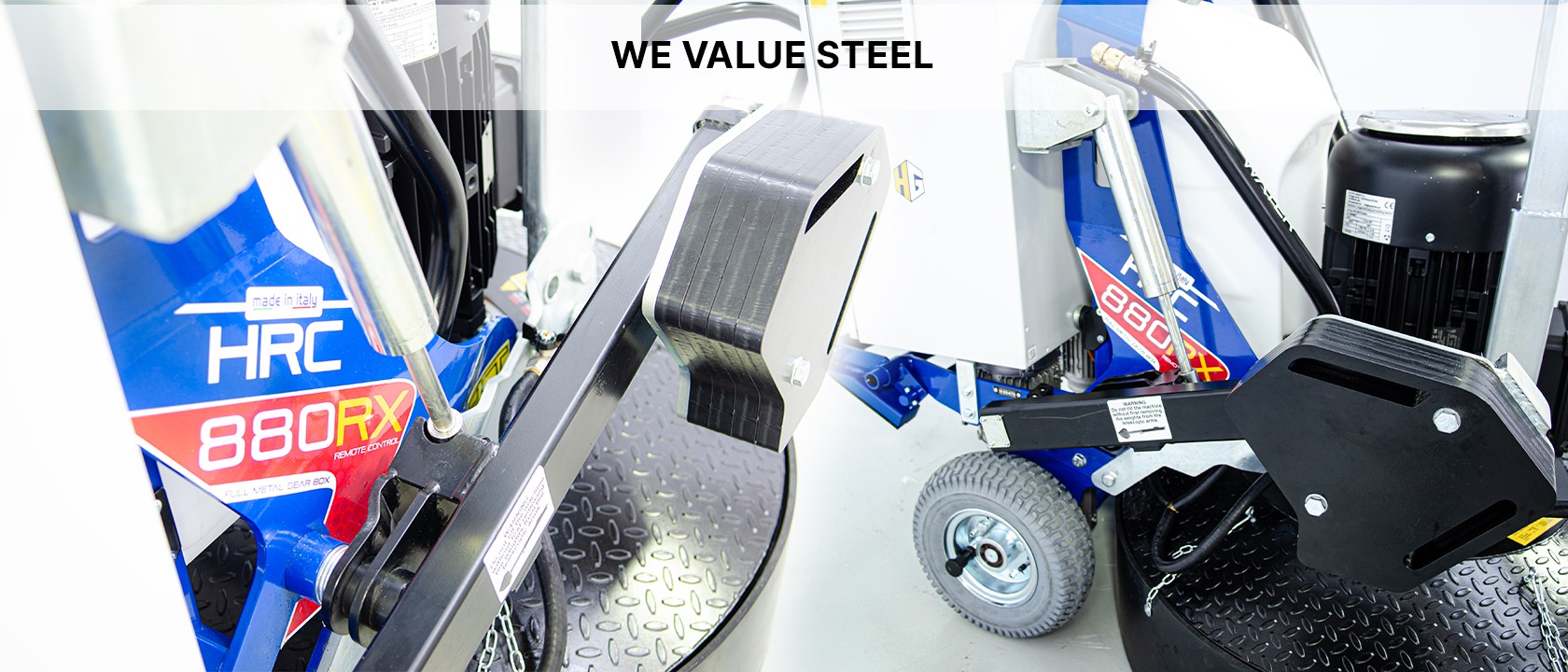

HRC 880 RX
Radio-controlled grinding machine equipped with DCT technology.
The DCT system allows operators to select between sanding with tool rotation only (DCT ON mode) or with the traditional full planetary rotation (DCT OFF mode), offering greater flexibility for different surface requirements.
×
×
PRODUCT DESCRIPTION
PROFESSIONAL GRINDER WITH DCT TECHNOLOGY
- The DCT technology allows you to choose between two operating modes:
- DCT ON: rotation of the tools only.
- DCT OFF: full rotation of the planetary system.
4-satellite planetary system for uniform and effective grinding. Compact and robust monocoque frame to reduce bulk and increase stability. 180° tiltable additional weight system (standard): Weights in front position: increased grinding pressure Weights in rear position: easier tilting for tool replacement. Large 46-liter water tank, ideal for extended operations. Front and rear LED work lights (optional), for optimal visibility even in poorly lit environments. Fully gear-driven transmission with heat-treated components to ensure maximum reliability and long service life. Low-noise floating planetary system for quieter and more comfortable operation. 2-year warranty: valid up to 2 years or 600 working hours for machines equipped with hour counter.
MAIN FEATURES
- Single-shell chassis, robust and compact for less space.
- Tempered stainless steel planetary and gear box. Fully geared transmission.
- 180 ° overturning system for extra weight. (Optional).
- Third wheel for easy transportation (Optional).
- Utensils free quick attachment system for diamond tools.
- 46 litre water tank.
- Powerful front and rear LED spotlights (Optional).
- Noise reduction levitating planetarium.
- 2 Year Warranty: The GUARANTEE for machines equipped with “hour counter” is up to 2 years or 600 hours of work.
| ESTIMATED PRODUCTION | |
|---|---|
| Concrete Polishing 7 step | 30-35 m2/h |
| Concrete Grinding 1 step | 100-130 m2/h |
| Terrazzo Polishing 5 step | 35-45 m2/h |
| Resin Removal 1 step | 150-180 m2/h |
| Paint Removal 1 step | 150-180 m2/h |
| Marble Polishing 5 step | 25-35 m2/h |
| Granite Polishing 7 step | 15-20 m2/h |
Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.
| Model | HRC 880 ST |
|---|---|
| Volume | 1.80 m3 |
| Size | 150x145x85 cm |
| Weight | 620 kg |
